Nomad

Nomad

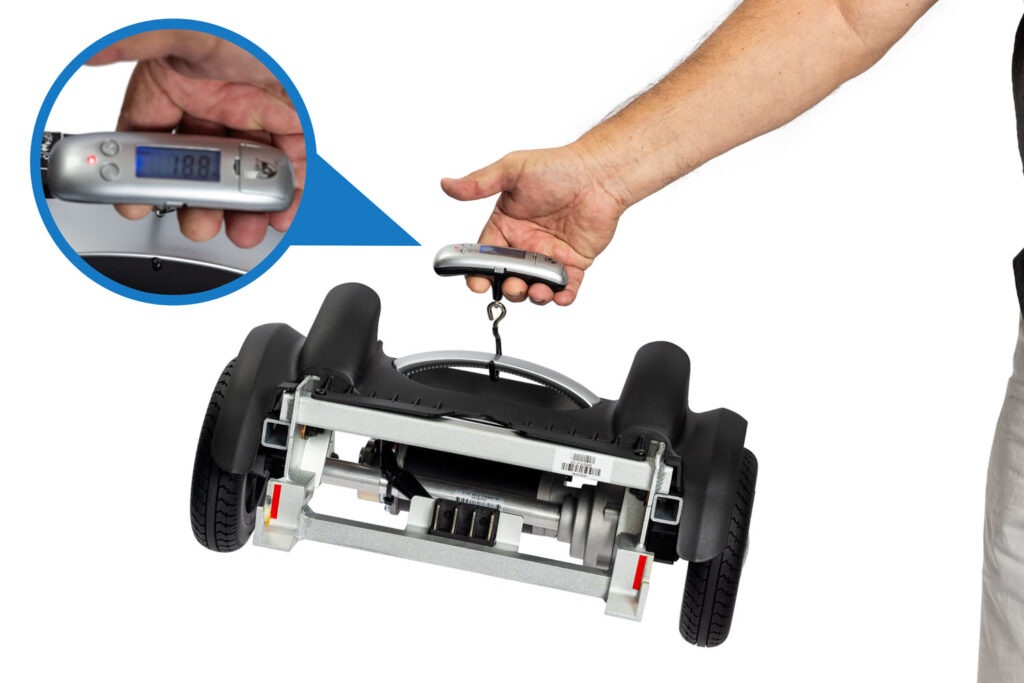

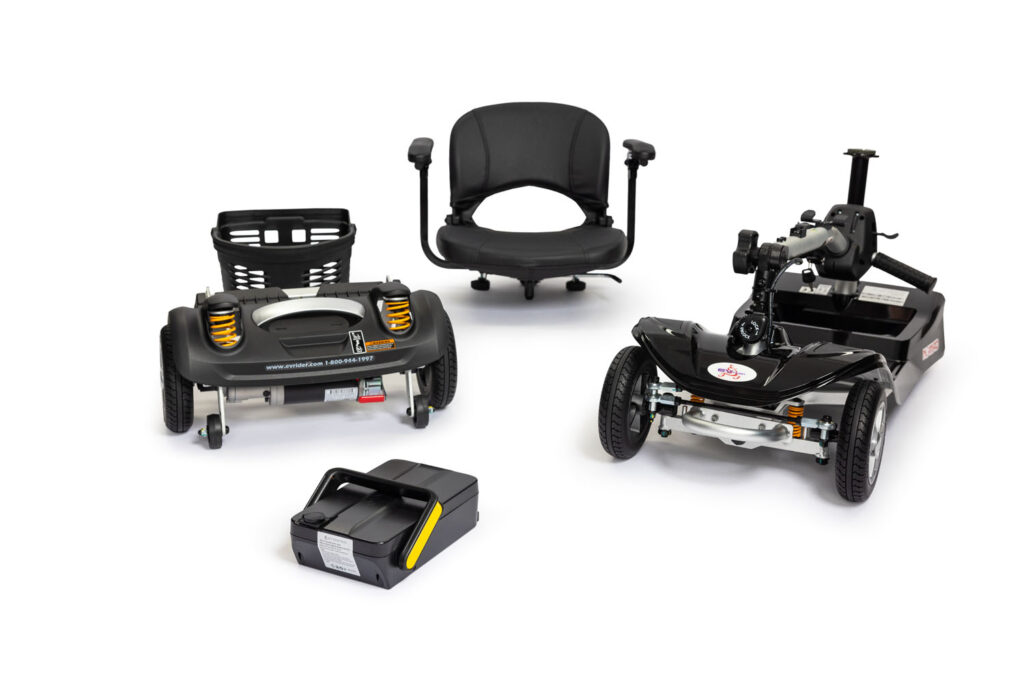

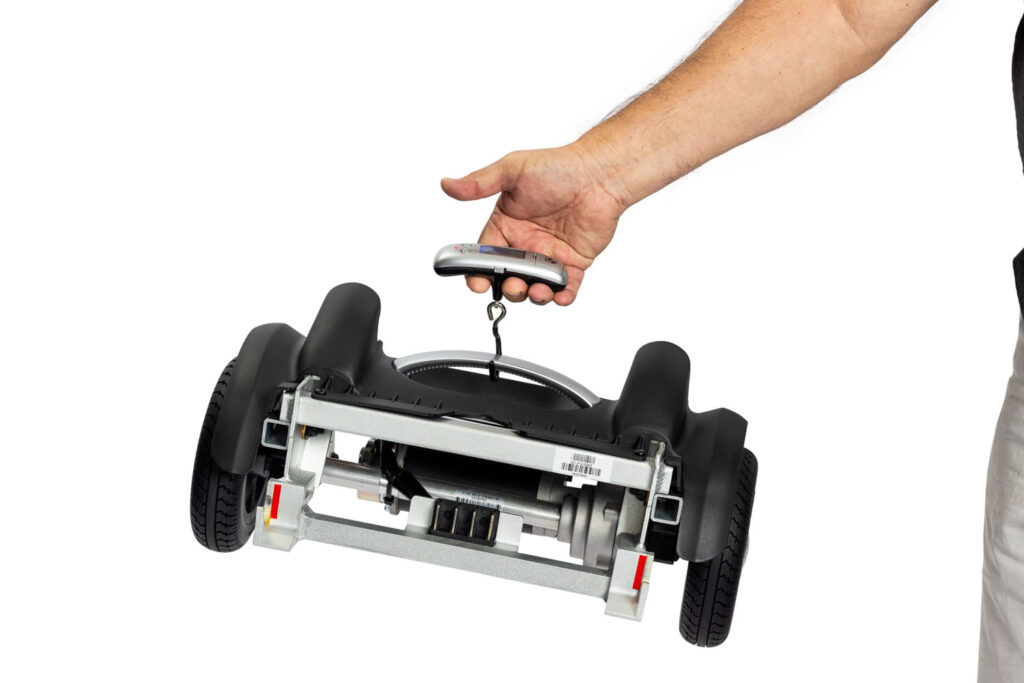

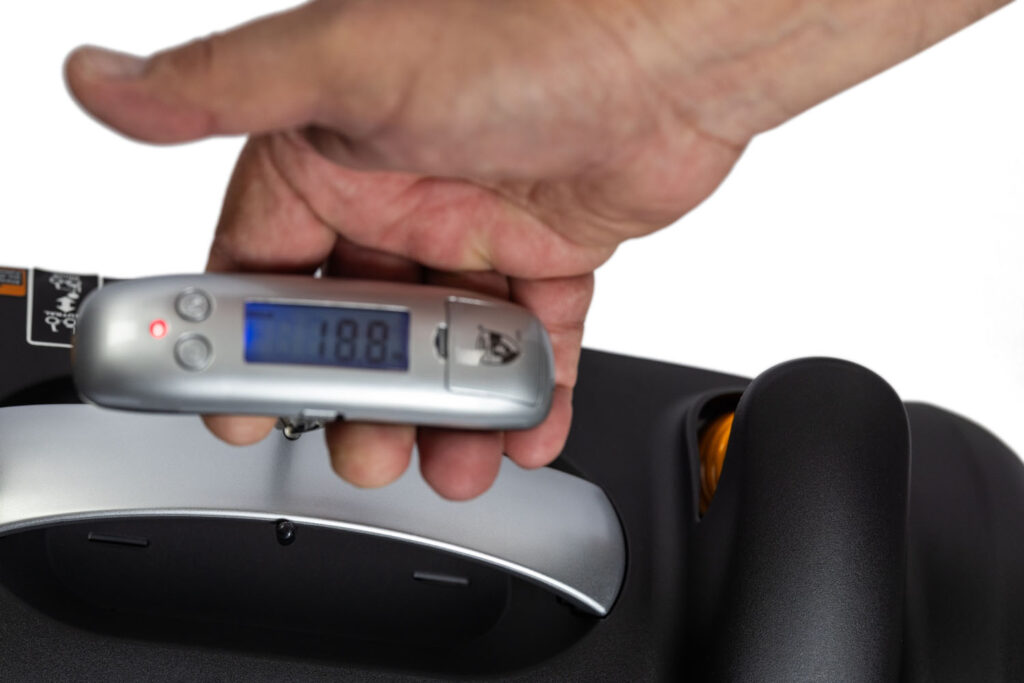

The NOMAD mobility scooter offers a lightweight, compact design perfect for ease of use and transportation. Made from durable aircraft aluminum, its heaviest component weighs only 20 lbs. It features a powerful airline-approved lithium battery with a 260 lb. weight capacity, providing a range of 7-10 miles per charge. The scooter is designed for ultimate comfort with a padded seat, full suspension, and adjustable armrests. It also boasts a 360° swivel seat for easy mounting and dismounting, plus a tight 49″ turning radius for great maneuverability. Ideal for travel, it disassembles quickly for easy storage and transport.

MAX SPEED
4.0
MPH

Load Capacity
260
LBS

Battery
10.3 Ah
Lithium

Range
7-10
Miles

SPECS

Overall Length1090mm – 43 in
Overall Width500mm – 20 in
Overall Height (at Maximum Tiller Height)L 1090mmx W 500mm xH 910mm (Unfolded) – 43 x 20 x 36 in
Overall Height – at Minimum Tiller HeightL 1090mmx W 500mm xH 410mm (Folded) – 43 x 20 x 16 in
Legroom – Floorboard Length x WidthL 480mm x 340mm – 19 x 13 in
L 260mm x 340mm – 10 x 13 in
Deck Height – Floorboard to Floor80mm – 3 in
Ground Clearance35mm(transaxle) – 1.5 in
Turning Radius1225mm – 49 in
Weight with Std.28.82 kg / 63.54 lb.
Weight without Batteries26.84 kg / 59 lb.
Seat TypeStadium Seat
Seat – Width & Depth & HeightW 425mm x D375mm x H310mm – 17 x 15 x 12 in
Seat – Cushion Thickness50mm – 2 in
Seat Height – Cushion to Deck400mm – 16 in
Seat Height – Cushion to Floor480mm – 19 in
Tire TypePU Tire
Rim Type RearPlastic
Rim Type FrontPlastic
Tire TypeSolid Tires
Outside Diameter Rear7.5” – 7.5 in
Tire Width Rear50 mm – 2 in
Outside Diameter Front7.5” – 7.5 in
Tire Width Front50 mm – 2 in
Battery Type & Power10.3Ah Lithium ion battery pack
Brake SystemAutomatic Electromagnetic Brake
Climbing Angle – Maximum Recommended<6°
Charger Type2Ah
Charging Timeup to 5 hours
ControllerDYNAMIC 50A
*Driving Range6.8 miles (11km)
Load Capacity120KGS/264lbs
Motor & Drive LocationREAR SECTION
Max Speed4 Miles/Hr/ 6KM/H
*Speed – Maximum6.4kmh/4mph

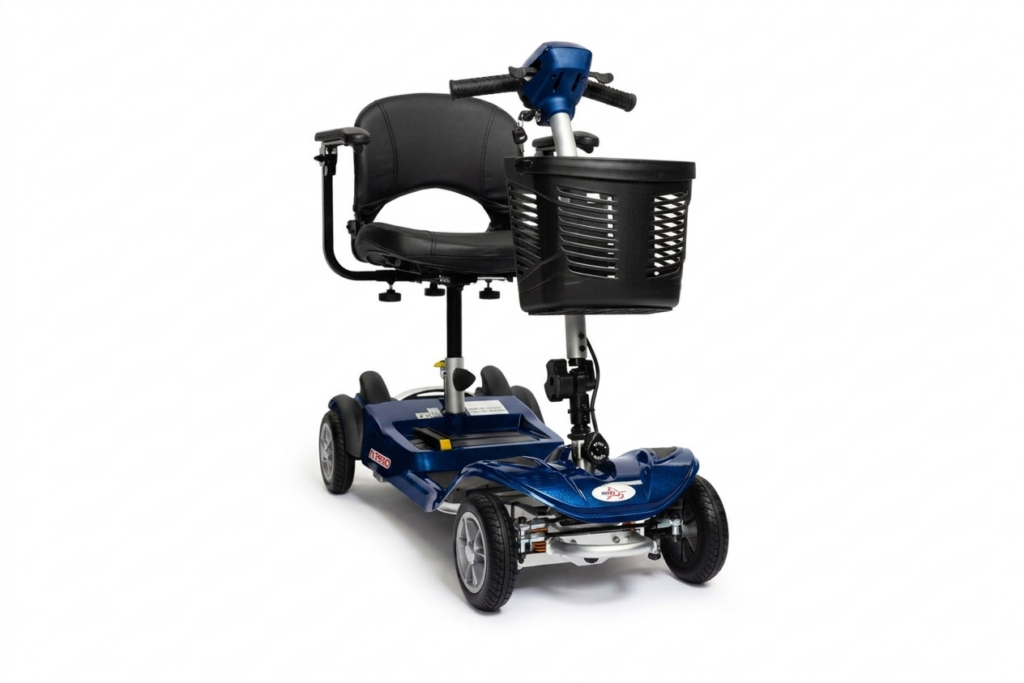

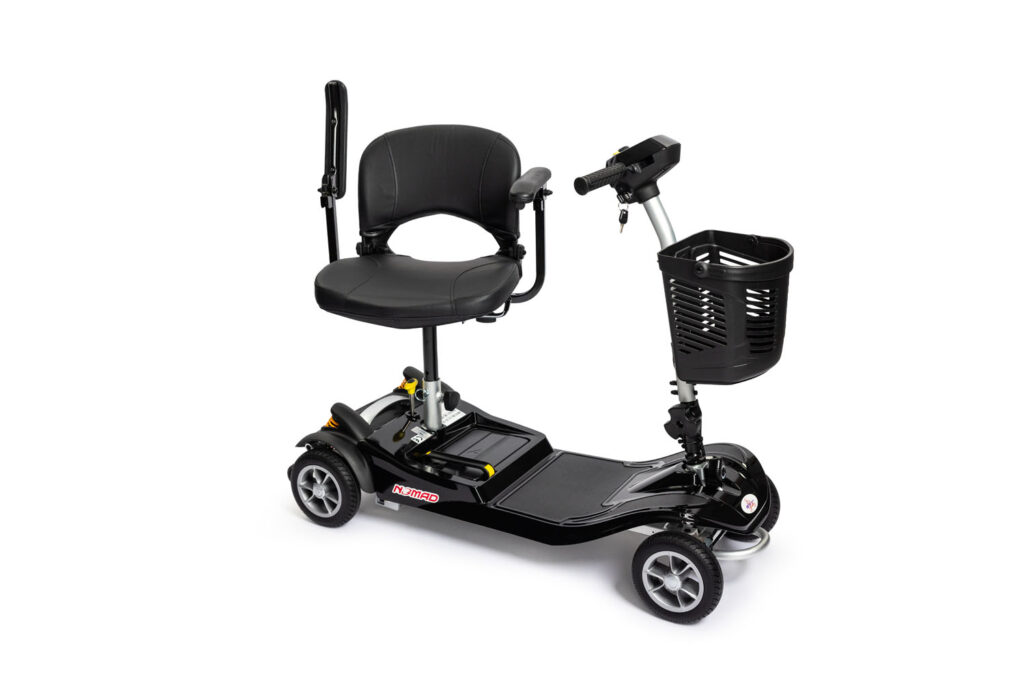

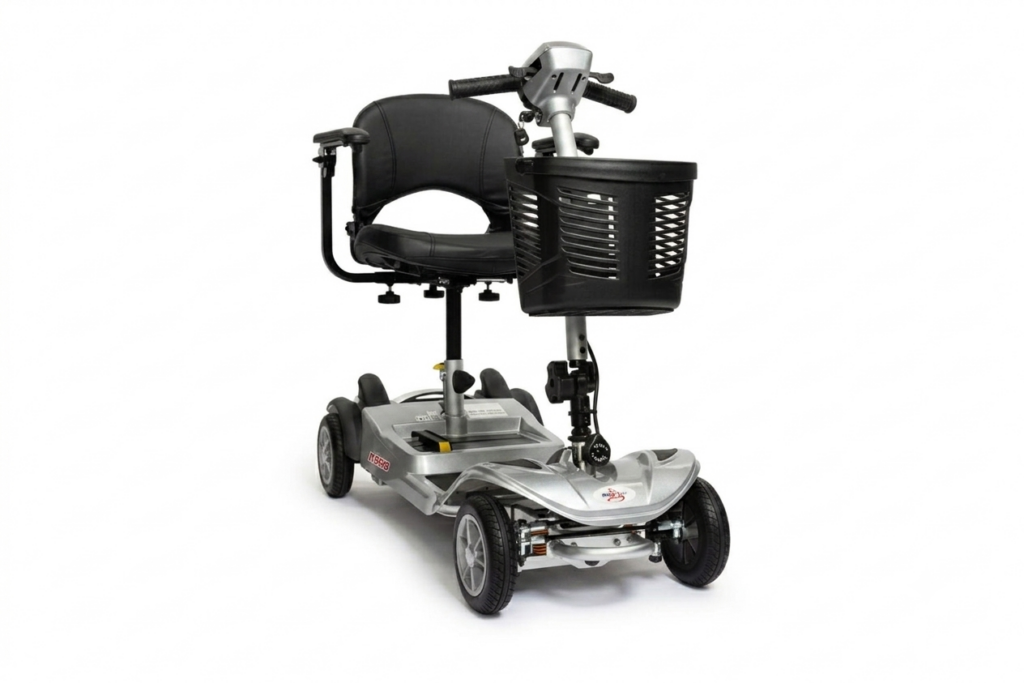

ColorsBLUE/BLACK/SILVER
Tiller TypeKNUCKLE
Throttle Control TypeWIG-WAG
Anti-Tipper Wheels-RearTwo
(*) SPECIFICATION PERFORMANCE IS DETERMINED IN THE LABORATORY SETTING BASED ON IDEAL CONDITIONS (MINIMAL FRICTION, NO WIND AND CONTROLLED TEMPERATURE AND PRESSURE WITH AN AVERAGE STANDARD WEIGHT). ACTUAL PERFORMANCE WILL BE DIFFERENT THAN RESULTS OBTAINED DURING LABORATORY TESTING.
