Transport AF+

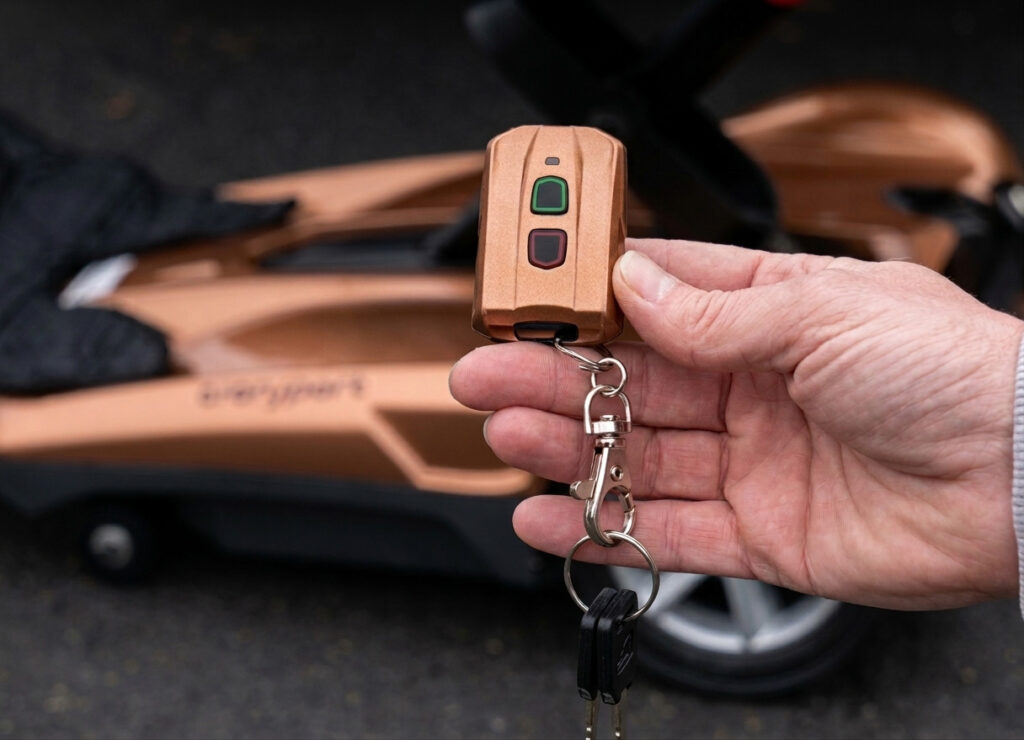

The EV Rider Transport AF+ scooter automatically folds up with your handheld remote. With the push of a button, it automatically folds in seconds! Approved for airline travel, the S19AF is equipped with an 11.5Ah lithium battery and weighs just 44 lbs making it perfect for travel on planes, trains, and cruise ships. Due to its ultra-tight turning radius, this compact scooter offers great maneuverability in narrow spaces. It features a height-adjustable tiller, LED headlight, and dual hand two-way throttle control. It can be stored virtually anywhere and easily fits in the trunk of most automobiles. Just press the button and watch this innovative scooter unfold!

Clear

MAX SPEED
3.8
MPH

Load Capacity
250
LBS

Battery
11.5AH
Lithium

Range
10
Miles

SPECS

Overall Length33.5″ in / 85cm
Overall Width16.5″ in / 42 cm
Overall Height – at Maximum Tiller Height33.5″ in / 85cm
Overall Height – at Minimum Tiller Height30″ in / 76cm
Legroom – Floorboard Length x Width17″ in / 43 cm
Deck Height – Floorboard to Floor4.8″ in / 12 cm
Ground Clearance1.4″ / 3.6 cm
Turning Radius31″ in / 79 cm
Folded Overall Length30” / 76 cm
Folded Overall Width16.5″ / 42cm
Folded Overall Height17.7” / 45 cm
Weight with 25.2V 11.5Ah Li Ion Batteries44 lbs / 20 kgs
Seat TypeFolding Mobility Seat
Seat – Width & Depth & Height15″ W x 12″ Depth x 9″H //38 cm x 30.5 cm x 23 cm
Seat – Cushion Thickness1″ in / 25 cm
Seat Height – Cushion to Deck15″ in / 38 cm
Seat Height – Cushion to Floor19.7″ in / 50 cm
Tire TypeSolid Tires
Rim Type RearIndustrial Plastic
Rim Type FrontIndustrial Plastic
OEM Spec RearN/A
Outside Diameter Rear8″ / 20 cm
Tire Width Rear2″ / 5 cm
OEM Spec FrontN/A
Outside Diameter Front6” / 15 cm
Tire Width Front1.4″ / 3.5cm
Battery Type & Power25.2V 11.5Ah Lithium Ion x1 (included)
Brake SystemElectromagnetic
Climbing Angle – Maximum Recommended3 degree
Charger TypeOff Board Li-Ion Charger

2.5 Amp 24 VDC, input: 110/240 Vac

Charging Time4 – 6 hrs
ControllerDynamic R‐Series 50A
*Driving RangeUp to 10 miles
Load Capacity250 Lbs / 115 kg
Motor & Drive Location180 watt 24 volt
*Speed – Maximumup to 3.8 mph *
ColorsBlue, Copper, Bugurndy, Silver
Tiller TypeT-Shape Type
Throttle Control TypePot Meter
Anti-Tipper Wheels-RearRear Casters – Standard
(*) SPECIFICATION PERFORMANCE IS DETERMINED IN THE LABORATORY SETTING BASED ON IDEAL CONDITIONS (MINIMAL FRICTION, NO WIND AND CONTROLLED TEMPERATURE AND PRESSURE WITH AN AVERAGE STANDARD WEIGHT). ACTUAL PERFORMANCE WILL BE DIFFERENT THAN RESULTS OBTAINED DURING LABORATORY TESTING.
