Transport 4M
Transport 4M

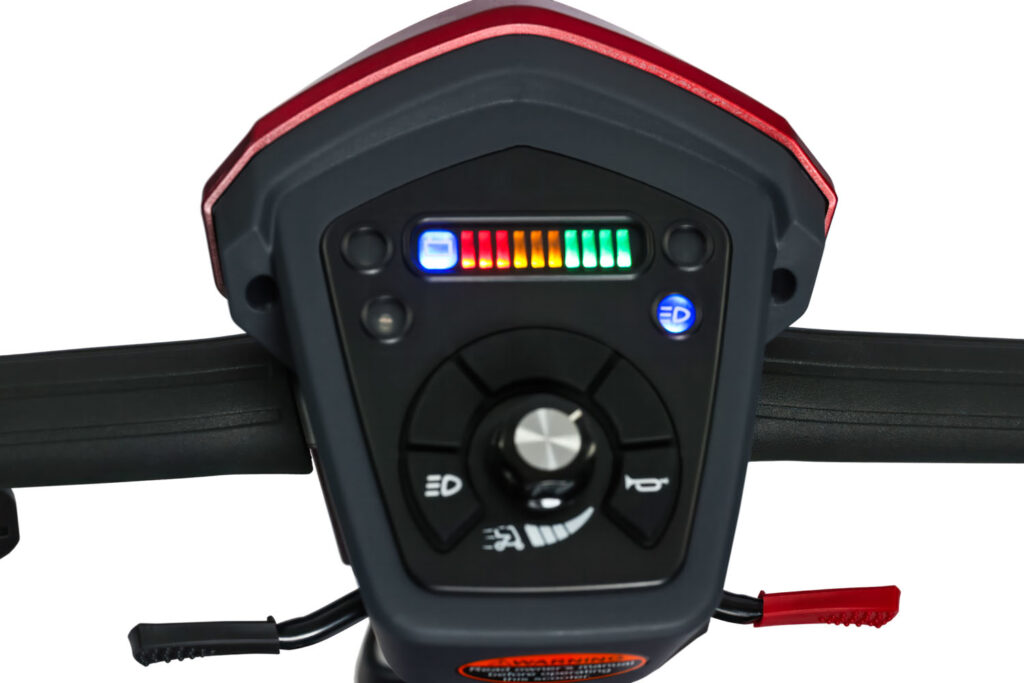

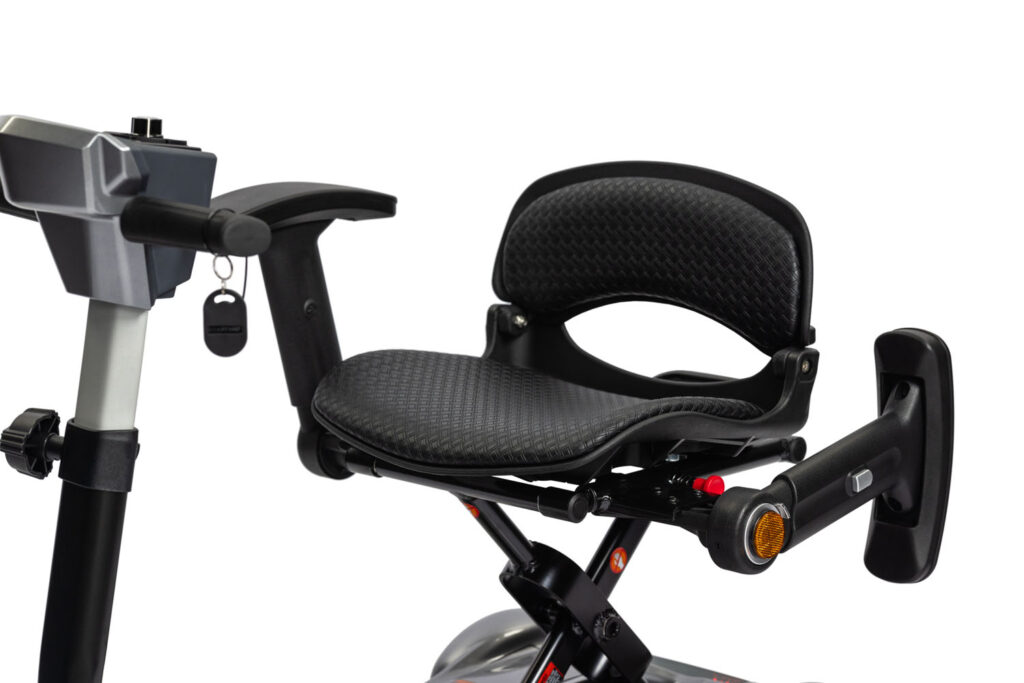

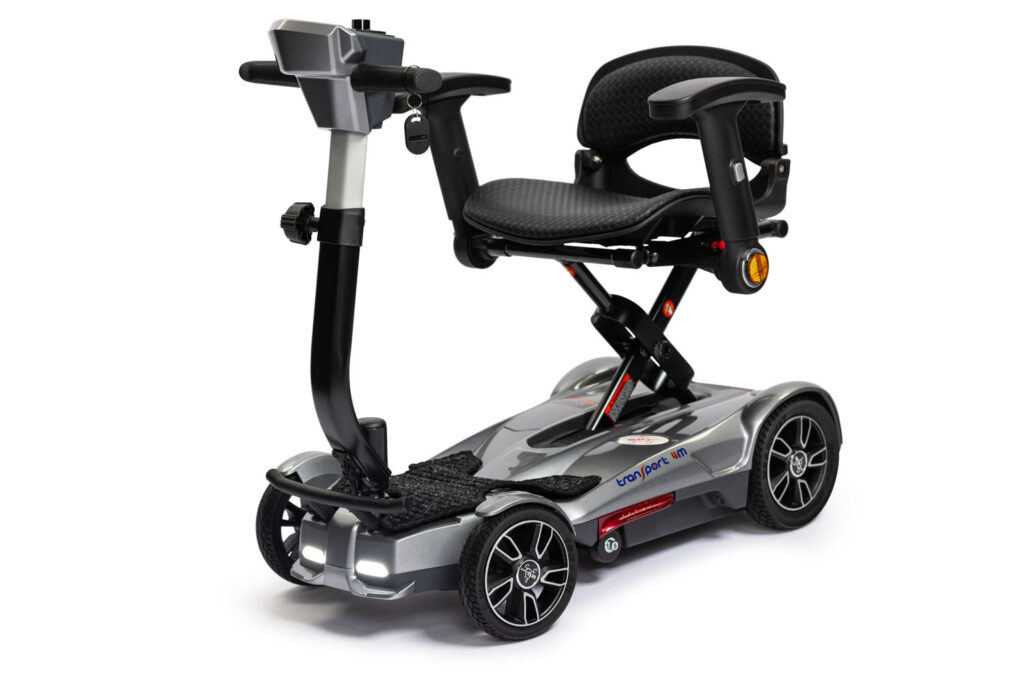

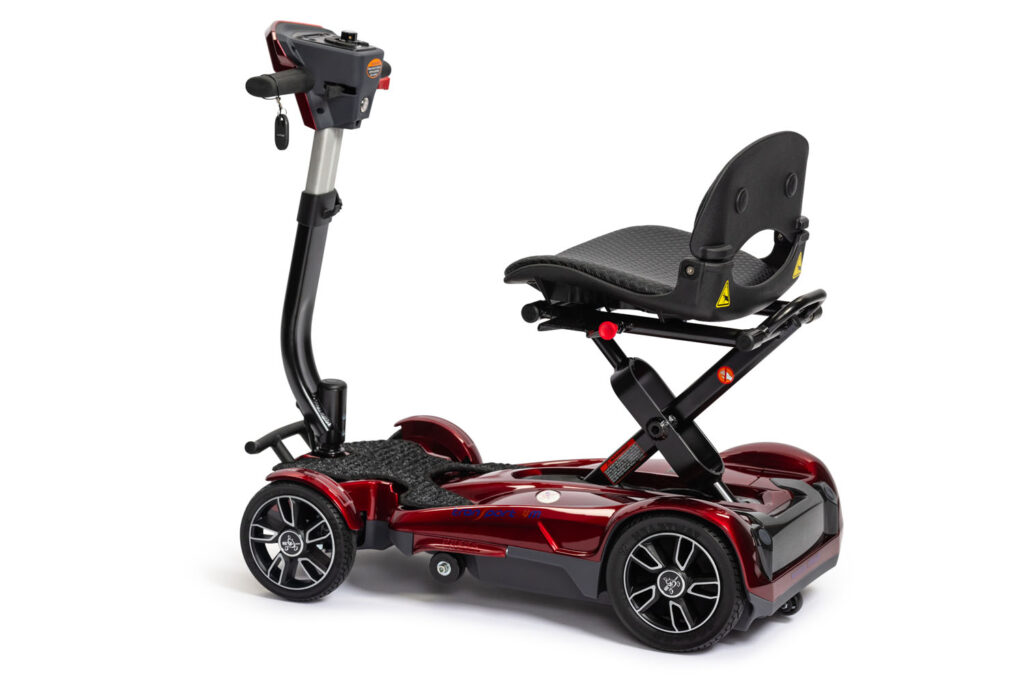

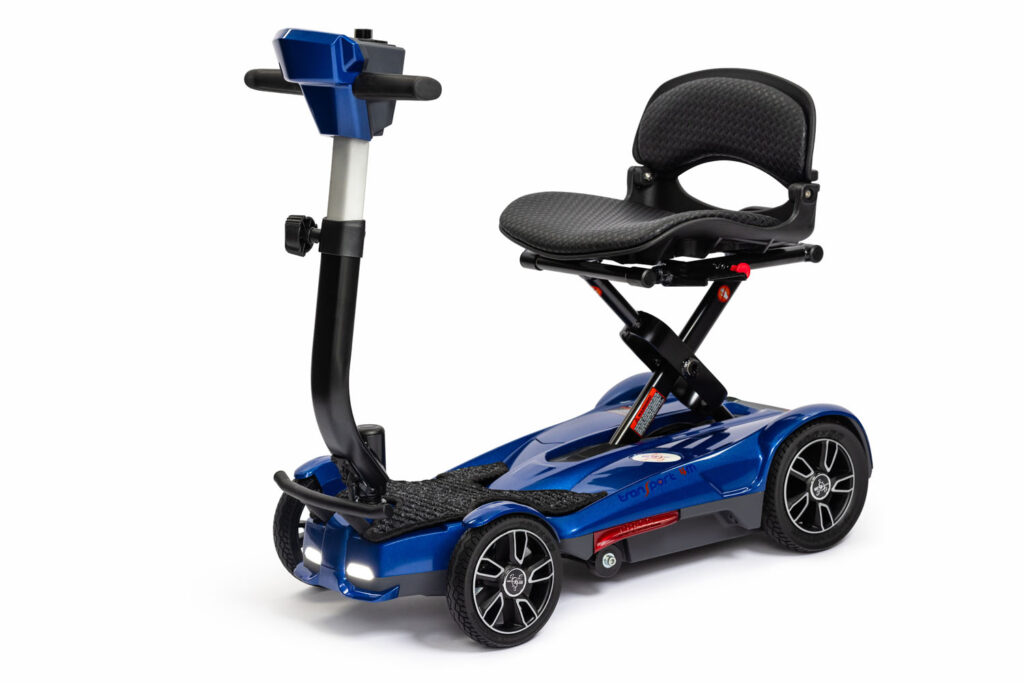

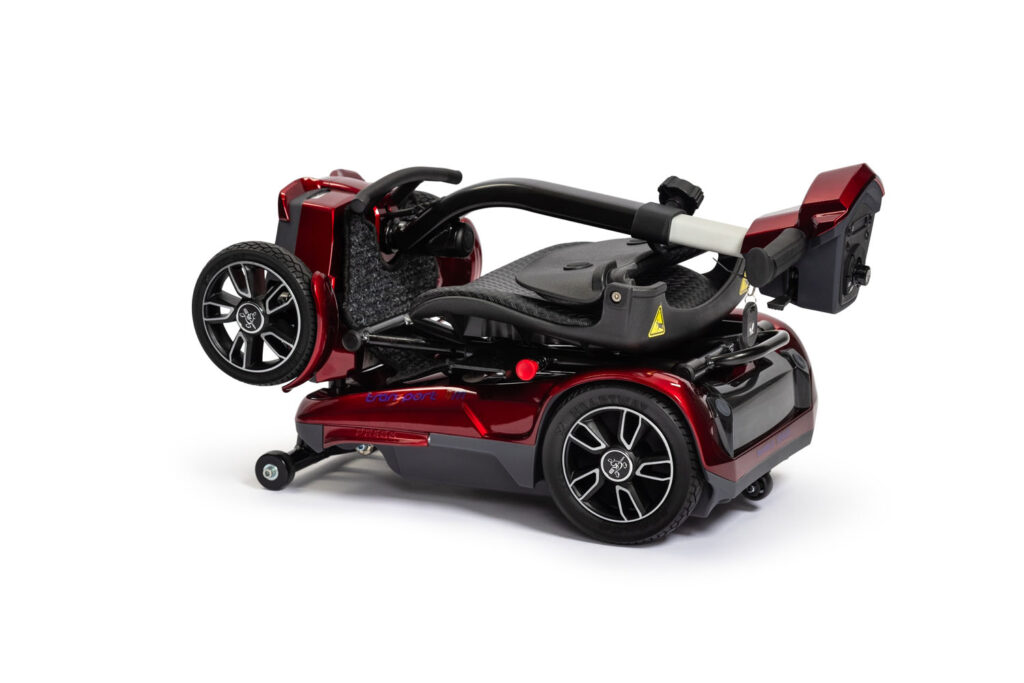

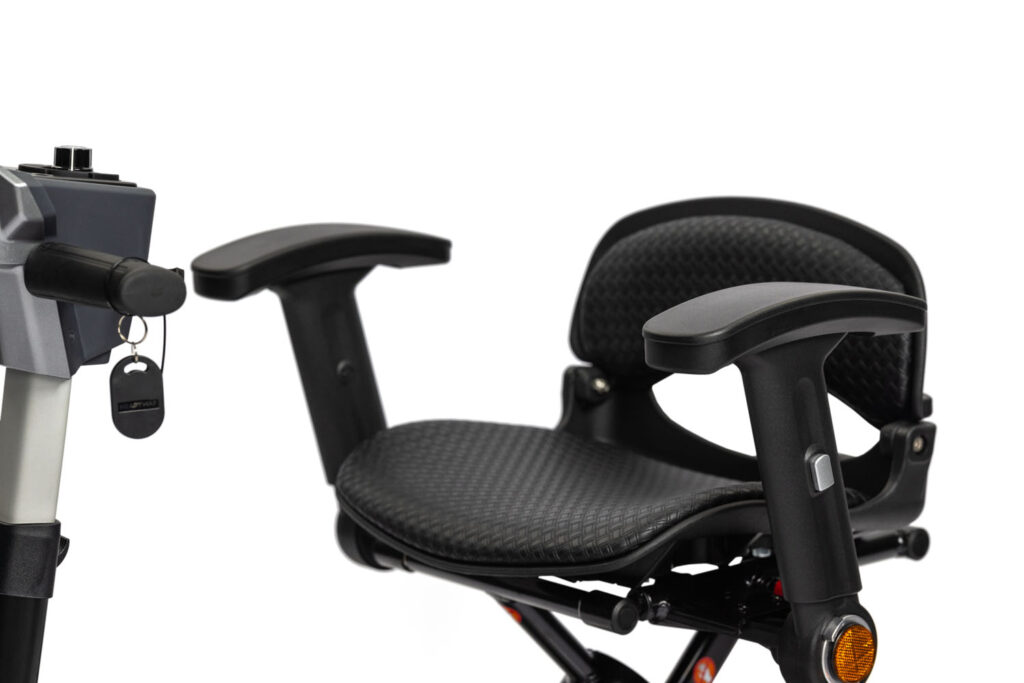

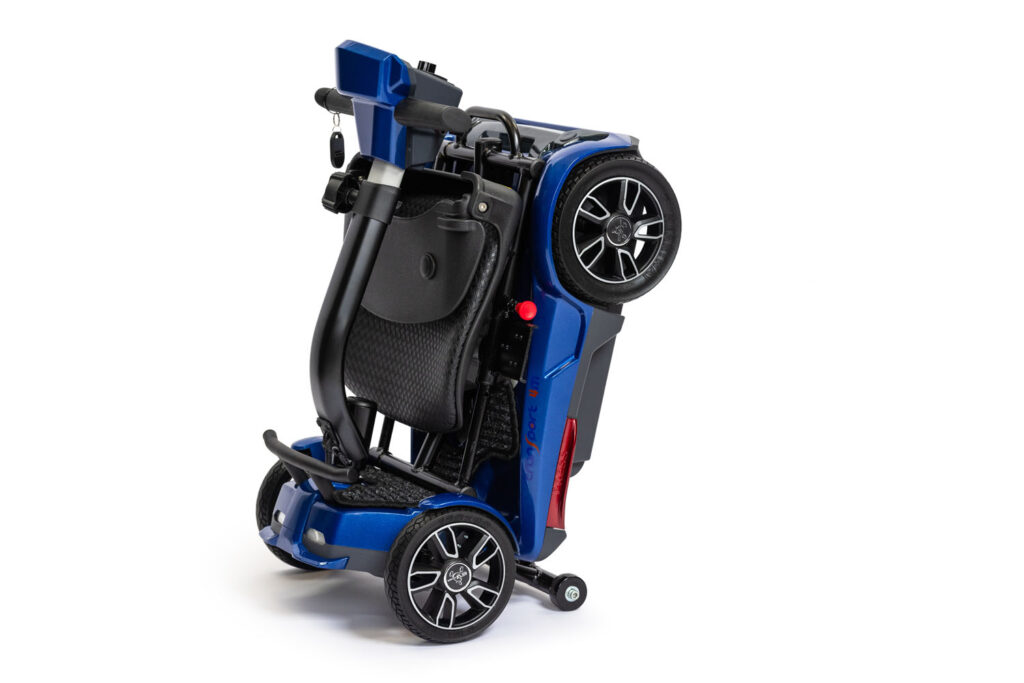

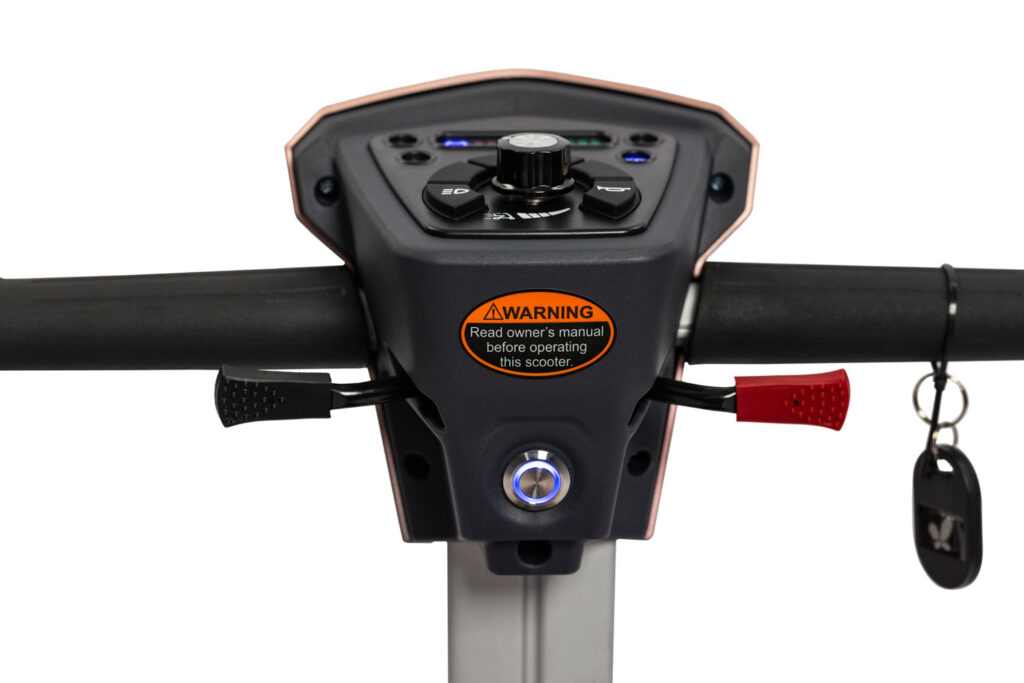

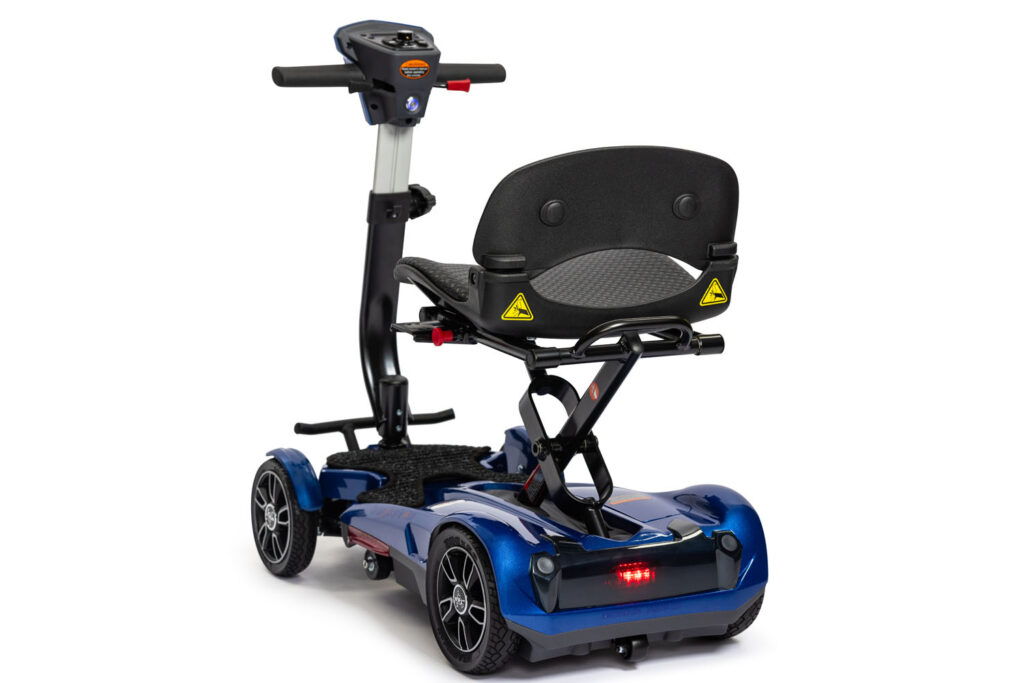

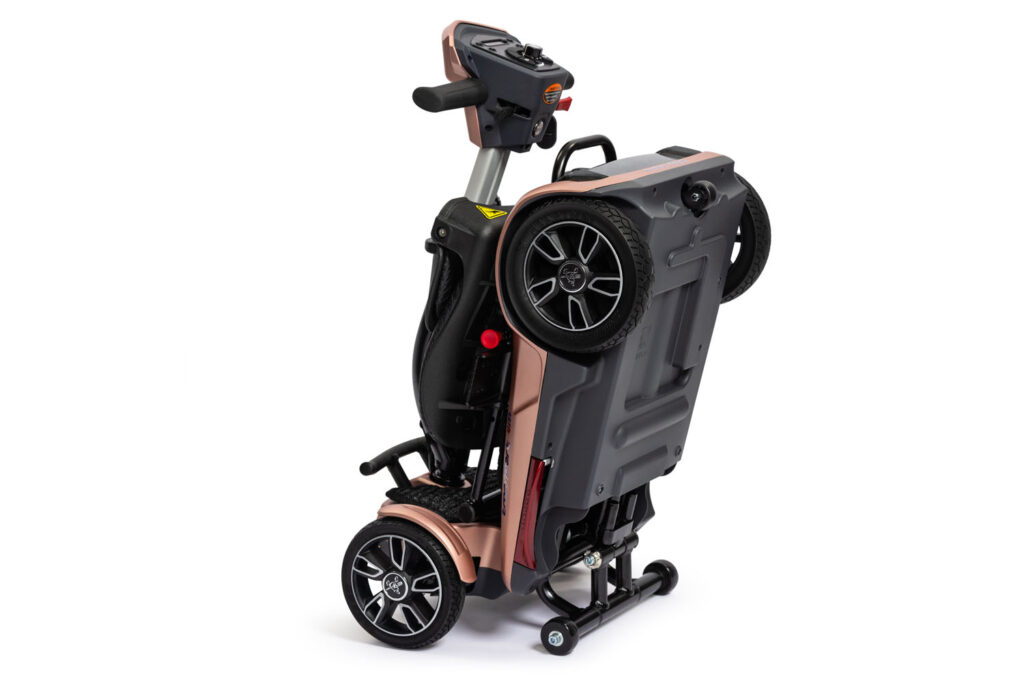

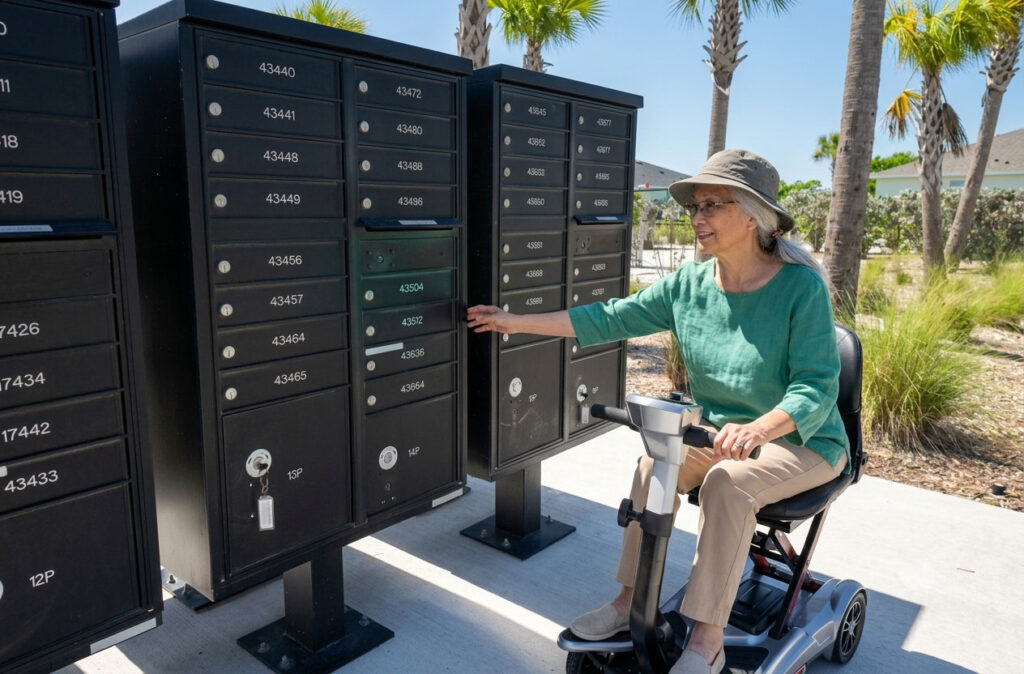

The Transport 4M is a compact and sturdy four-wheel mobility scooter, designed for both stability and convenience. Featuring a sleek design with two-tone rims, it offers a smooth, safe ride thanks to its front steering sensor that reduces speed during turns. The scooter is equipped with automatic LED lights, an electronic key, and a digital display for ease of use. Its adjustable tiller and optional armrests provide customizable comfort, while its airline-approved lithium battery offers portability. Folding in seconds, this scooter weighs 55 lbs and supports up to 250 lbs, making it perfect for travel and daily use.
MAX SPEED
3.7
MPH
Load Capacity
250
LBS
Battery
10.05 Ah
Lithium
Range
6.8
Miles
SPECS
| Overall Length | 33.5”in / 85cm |
| Overall Width | 23” in / 58.5cm |
| Overall Height (at Maximum Tiller Height) | 33.5”in / 85cm |
| Overall Height – at Minimum Tiller Height | 30” in / 76cm |
| Legroom – Floorboard Length x Width | 17″ in / 43 cm |
| Deck Height – Floorboard to Floor | 5.9″ in / 15 cm |
| Ground Clearance | 1.4″ / 3.6 cm |
| Turning Radius | 39.3” in / 100cm |
| Weight with Std. | 55 lbs / 25kgs |
| Weight without Batteries | 51.8 lbs / 23.5kgs |
| Seat Type | Folding Mobility Seat |
| Seat – Width & Depth & Height | 15″ W x 12″ D x 9″H / 38 cm x 30.5 cm x 23 cm |
| Seat – Cushion Thickness | 1″ in / 2.5 cm |
| Seat Height – Cushion to Deck | 15″ in / 38 cm |
| Seat Height – Cushion to Floor | 19.7″ in / 50 cm |
| Tire Type | Solid Tires |
| Rim Type Rear | Industrial Plastic |
| Rim Type Front | Industrial Plastic |
| Outside Diameter Rear | 7.9″ / 20 cm |
| Tire Width Rear | 2″ / 5 cm |
| Outside Diameter Front | 7.08” in / 18cm |
| Tire Width Front | 1.57” in / 4cm |
| Battery Type & Power | 24V 10.05Ah Lithium Ion x1 (included) |
| Brake System | Electromagnetic |
| Climbing Angle – Maximum Recommended | 3° |
| Charger Type | Off Board Li-Ion Charger 2 Amp 24 VDC, input: 100/240 Vac |
| Charging Time | 4 – 6 hrs |
| Controller | Dynamic R‐Series 50A |
| *Driving Range | 6.8 miles (11km) |
| Load Capacity | 250 lbs / 115 kg |
| Motor & Drive Location | 180 watt 24 volt |
| Max Speed | 4 Miles/Hr/ 6KM/H |
| *Speed – Maximum | up to 3.7 mph |
| Colors | Blue, Silver, Rose Gold, Red |
| Tiller Type | T-Shape Type |
| Throttle Control Type | Pot Meter |
| Anti-Tipper Wheels-Rear | Rear Casters – Standard |
